What are Monel 400 and K500 Round Bars?

Monel 400 and K500 Round Bars are solid cylindrical bars manufactured from nickel-copper alloys. These materials offer exceptional resistance to seawater, hydrofluoric acid, alkalis, and corrosive environments along with high mechanical strength. Monel is known for outstanding corrosion resistance and excellent performance in marine and chemical applications, making it ideal for marine shafts, pump components, valves, offshore structures, chemical processing equipment, and heat exchangers.

What is the difference between Monel 400 and Monel K500?

Monel 400 (UNS N04400) offers excellent corrosion resistance in marine and chemical environments with good mechanical properties, non-magnetic in annealed condition, and tensile strength of 550-620 MPa. Monel K500 (UNS N05500) is a precipitation-hardened version offering much higher strength and hardness (850-1100 MPa) with excellent corrosion resistance similar to Monel 400. K500 provides outstanding resistance to wear and galling, making it ideal for high-load applications such as shafts, fasteners, and pump components, and becomes magnetic after heat treatment.

When should I choose Monel Round Bars?

Choose Monel Round Bars when excellent resistance to seawater and marine corrosion is required, high strength and toughness are essential, components operate in acidic or alkaline environments, resistance to stress corrosion cracking is needed, and long service life in harsh conditions is critical. Choose bright or machined bars when high dimensional accuracy is required, smooth surface finish is essential, precision machining or threading is involved, and uniform mechanical properties are required for valves, shafts, and fasteners.

What are the applications of Monel Round Bars?

These round bars are used in Marine & Offshore for shafts, fasteners, and seawater equipment; in Chemical Processing for valves, pumps, and heat exchangers; and in Oil & Gas for downhole components and offshore structures requiring corrosion resistance, strength, and durability.

What industries use Monel Round Bars?

Monel alloys are widely used in Marine & Offshore Industry for continuous seawater exposure conditions; Chemical Processing for corrosive chemical environments; and Oil & Gas for offshore and downhole systems where superior corrosion resistance and mechanical reliability are essential.

What is the typical tensile strength of Monel Round Bars?

Monel 400 offers a minimum tensile strength of approximately 550 MPa (80 ksi) and yield strength of 170 MPa (25 ksi) with elongation of 35%. Monel K500 provides significantly higher strength with a minimum tensile strength of 850 MPa (123 ksi) and yield strength of 480 MPa (70 ksi) after precipitation hardening, with elongation of 20%. Both grades offer excellent toughness, durability, and pressure-handling capability across a wide temperature range.

Is Monel K500 magnetic?

Monel 400 is non-magnetic in the annealed condition. Monel K500 becomes magnetic after heat treatment due to the precipitation hardening process. This magnetic property is an important consideration when selecting between the two grades for specific applications requiring non-magnetic properties.

What manufacturing standards do you follow for Monel Round Bars?

Our Monel Round Bars are manufactured in compliance with ASTM B164 / ASME SB164 for Monel 400, ASTM B865 / ASME SB865 for Monel K500, and ASTM B880 for general requirements. They are available in various sizes with full material traceability, PMI testing, and ISO 9001:2015 certification.

Why choose Ratnadeep Steel for Monel Round Bars?

Ratnadeep Steel & Engg. Co. is a renowned manufacturer, exporter, and supplier based in Mumbai, India. We offer factory pricing, top quality, custom sizes, and timely delivery. Our Monel round bars are precision-engineered with rigorous quality inspection, making us a trusted global supplier. We provide ISO 9001:2015 certified products with full material traceability.

Monel 400/K500 Round Bars & Rods

Mechanical Strength • Accuracy & Straightness • Quality & Finish

Get a Quote

Monel 400 / K500 Explained

Monel 400 and K500 are nickel-copper alloys engineered for exceptional corrosion resistance. To begin with, they perform exceptionally well in seawater, hydrofluoric acid, alkalis, and acidic environments. Furthermore, these alloys offer excellent mechanical strength, toughness, and resistance to stress corrosion cracking across a wide temperature range.

Which Monel grade is right for your application? First and foremost, Monel 400 provides outstanding corrosion resistance with good fabricability — making it ideal for general-purpose corrosive service. In addition, Monel K500 offers higher strength and hardness through age hardening, making it suitable for more demanding mechanical applications. Moreover, both grades maintain structural integrity under severe operating conditions, ensuring long-term reliability.

Consequently, Monel 400 / K500 are widely used in marine and offshore systems, chemical processing equipment, and oil & gas components. Furthermore, they are also trusted in pumps, valves, heat exchangers, and high-strength fasteners. Equally important, their combination of durability, corrosion resistance, and mechanical strength makes them the preferred choice for applications where failure is not an option.

Need premium Monel round bars for your critical application? Contact our technical team today — we’ll help you select the right grade (400 or K500) and specifications for your requirements, and provide a competitive quote tailored to your needs.

Other Types of Monel Alloy 400 / K500 Bars

View Monel 400 / K500 Square Bar

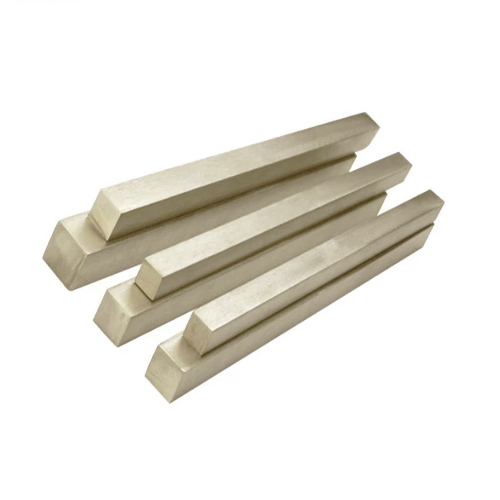

Monel Alloy 400 / K500 Square Bar

Monel square bars with excellent seawater corrosion resistance
Material grades: UNS N04400, UNS N05500
Manufactured as per ASTM B164 and ASME SB164
Ideal for marine and chemical environments

View Monel 400 / K500 Hex Bar

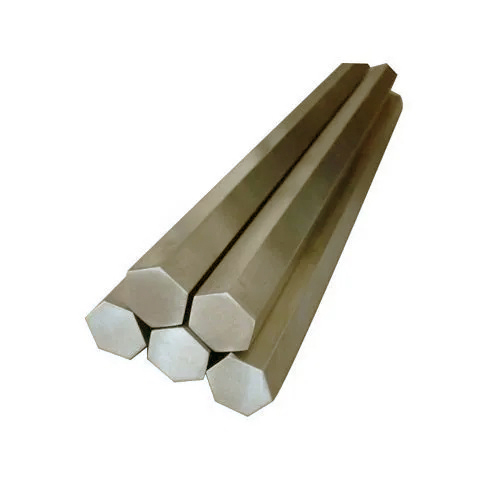

Monel Alloy 400 / K500 Hex Bar

Hexagonal Monel bars for fasteners and pressure systems
Produced in accordance with ASTM B164 standards
Available in hot rolled, bright drawn, and polished finish
Used in oil & gas and marine industries

View Monel 400 / K500 Rectangular Bar

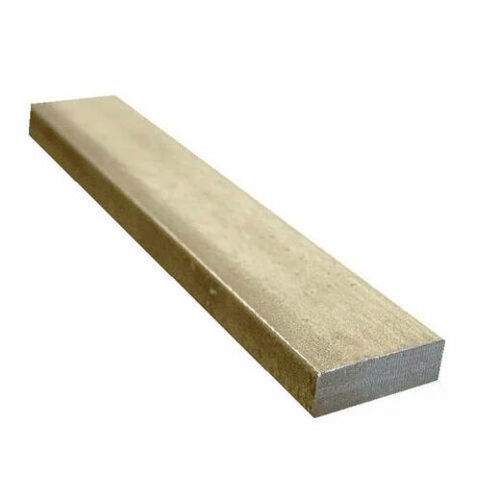

Monel Alloy 400 / K500 Rectangular Bar

Rectangular Monel bars for structural and fabrication use
Manufactured as per ASTM B164 / ASME SB164
Grades: Monel 400 and Monel K500
Suitable for chemical and offshore applications

View Monel 400 / K500 Flat Bar

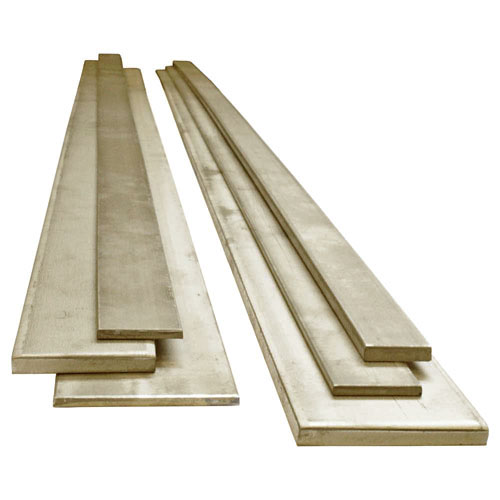

Monel Alloy 400 / K500 Flat Bar

Monel flat bars with excellent resistance to acids and seawater
Conforms to ASTM B164 and ASME SB164
Supplied in hot rolled, annealed, and polished condition
Used in marine, chemical, and oil & gas plants

View Monel 400 / K500 Bright Bar

Monel Alloy 400 / K500 Bright Bar

Bright drawn Monel bars with smooth surface finish
Ideal for precision machining and valve components
Manufactured as per ASTM B164 specifications
Ensures tight tolerances and uniform properties

View Monel 400 / K500 Forged Bar

Monel Alloy 400 / K500 Forged Bar

Forged Monel bars for high-strength and pressure applications
Excellent resistance to fatigue and stress corrosion cracking
Grades: Monel 400 and Monel K500
Widely used in offshore, marine, and oil & gas sectors

MONEL 400 / K500 ROUND BAR EQUIVALENT GRADES

STANDARD	UNS	WERKSTOFF NR.	JIS	EN
Monel 400	N04400	2.4360	NW 4400	NiCu30Fe
Monel K500	N05500	2.4375	—	—

SPECIFICATION OF MONEL 400 / K500 ROUND BAR

Standard Specification	ASTM B164 / ASTM A479, ASME SB164 / ASME SA479
Dimension Standard	EN, DIN, JIS, ASTM, BS, ASME, AISI
Size Range	14 mm to 300 mm
Length	1 to 6 meters, Custom Cut Length
Forms Available	Round, Square, Hex (AF), Rectangular, Billet, Ingot, Forged

CHEMICAL COMPOSITION OF MONEL 400 / K500 ROUND BAR

Grade	Ni	Fe	C	Mn	Si	Cu	Al	Ti	S
Monel 400	63.0 – 70.0	2.5 max	0.30 max	2.0 max	0.50 max	Remainder	—	—	0.024 max
Monel K500	63.0 min	0.5 – 2.0	0.25 max	1.5 max	0.50 max	27.0 – 33.0	2.3 – 3.15	0.35 – 0.85	0.010 max

MECHANICAL PROPERTIES OF MONEL 400 / K500 ROUND BAR

Grade	Tensile Strength	0.2% Yield Strength	Elongation	Hardness (HRB)
Monel 400	75 – 90 ksi	25 – 50 ksi	35 – 60%	60 – 80
Monel K500	1100 MPa (160 ksi)	790 MPa (115 ksi)	20%	—

PHYSICAL PROPERTIES OF MONEL 400 / K500 ROUND BAR

Density @ Room Temperature	0.318 lb/in³
Elastic Modulus @ 70°F (Tension)	26.0 × 10⁶ psi
Specific Heat @ 70°F	0.102 Btu/lb/°F
Melting Point	2370°F – 2460°F
Thermal Conductivity @ 70°F	151 Btu·in/hr·ft²·°F
Electrical Resistivity @ 70°F	0.511 μΩ·m

💡 Practical Difference in Use

Use Monel 400 / K500 Round Bars when: exceptional resistance to seawater, hydrofluoric acid, alkalis, and corrosive environments is required along with high mechanical strength. Monel is a nickel-copper alloy known for outstanding corrosion resistance and excellent performance in marine and chemical applications. → Example: marine shafts, pump components, valves, offshore structures, chemical processing equipment, and heat exchangers.

Bright Finished / Machined Monel Round Bars when: tight dimensional tolerances, smooth surface finish, and precision machining are critical. Bright drawn or ground Monel bars improve machinability and ensure consistent mechanical properties. → Example: precision shafts, valve stems, fasteners, marine hardware, and CNC-machined components.

Applications of Monel 400 / K500 Round Bars

Monel round bars are extensively used in industries where corrosion resistance, strength, and durability are essential.

Marine & Offshore: Shafts, fasteners, seawater equipment.
Chemical Processing: Valves, pumps, heat exchangers.
Oil & Gas: Downhole components, offshore structures.

When to Choose Monel 400 / K500 Round Bars?

The selection depends on corrosion exposure, strength requirements, fabrication needs, and service environment.

Choose Monel Round Bars when:

Excellent resistance to seawater and marine corrosion is required
High strength and toughness are essential
Components operate in acidic or alkaline environments
Resistance to stress corrosion cracking is needed
Long service life in harsh conditions is critical
Used in marine, chemical, or oil & gas industries

Bright / Machined Monel Round Bars are preferred when:

High dimensional accuracy is required
Smooth surface finish is essential
Precision machining or threading is involved
Uniform mechanical properties are required
Used in valves, shafts, and fasteners
Applied in critical marine assemblies

Industries That Use Monel 400 / K500 Round Bars

Monel alloys are widely used in demanding environments requiring superior corrosion resistance and mechanical reliability.

Marine & Offshore Industry

Used in continuous seawater exposure conditions.

Uses

Shafts, fasteners, seawater pumps.

Why Monel?

Outstanding resistance to seawater corrosion.

Chemical Processing

Used in corrosive chemical environments.

Uses

Valves, heat exchangers, pumps.

Why Monel?

Excellent resistance to acids and alkalis.

Oil & Gas

Used in offshore and downhole systems.

Uses

Structural components, fasteners.

Why Monel?

High strength with corrosion resistance.

Request a Quote

Looking for high-quality Monel 400 / K500 Round Bars & Rods? Our products are manufactured in compliance with ASTM B164 and ASME SB164 standards for Monel 400, and ASTM B865 and ASME SB865 for Monel K500 . Get in touch with us today.
