Alloy Steel F9 Round Bars and Rods

Mechanical Strength • Accuracy & Straightness • Quality & Finish

Get a Quote

Alloy Steel Grade F9 Explained

Alloy Steel Grade F9 is a 9% chromium-molybdenum alloy steel. To begin with, it is specifically engineered for high-temperature service where creep resistance and oxidation protection are critical. Furthermore, its elevated chromium content delivers superior resistance to thermal fatigue and scaling — outperforming many lower-alloy grades in demanding heat-transfer applications.

Why do power generation and petrochemical engineers choose Grade F9 for critical high-temperature systems? First and foremost, it offers excellent creep resistance and long-term stability under continuous high-temperature exposure. In addition, its enhanced mechanical strength ensures reliable performance in high-pressure steam and heat-transfer environments. Moreover, its 9% chromium content provides improved resistance to oxidation and thermal fatigue — reducing the risk of premature failure.

Consequently, Grade F9 is widely used in high-temperature piping, superheaters, and reheaters in thermal power plants. Furthermore, it is also trusted in petrochemical and refinery applications where elevated temperature performance is essential. Equally important, its combination of creep resistance, oxidation protection, and mechanical strength makes it a preferred choice for demanding steam and heat-transfer applications where reliability and longevity are critical.

Need premium Alloy Steel Grade F9 round bars for your high-temperature project? Contact our technical team today — we’ll help you select the right size and specifications for your requirements, and provide a competitive quote tailored to your needs.

Other Types of Alloy Steel F9 Bars

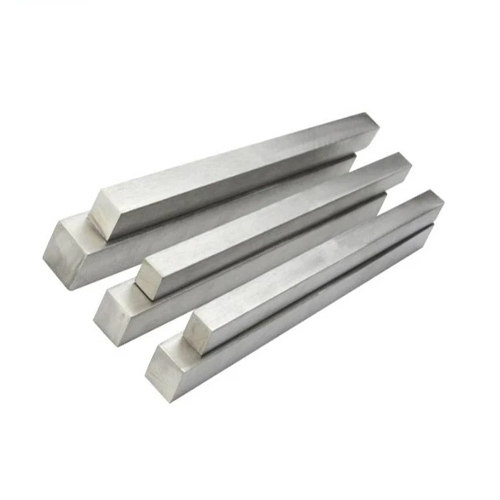

Alloy Steel F9 Square Bar
View Alloy Steel F9 Square Bar
Alloy Steel F9 Square Bar
  • Square alloy steel bars designed for high-temperature service
  • Grade: Alloy Steel F9 / UNS K90941
  • Manufactured as per ASTM A182 requirements
  • Used in superheaters, boilers, and power plant piping
Alloy Steel F9 Hex Bar
View Alloy Steel F9 Hex Bar
Alloy Steel F9 Hex Bar
  • Hexagonal alloy steel bars suitable for bolting and fasteners
  • ASTM A182 Alloy Steel F9 grade material
  • Available in hot rolled, bright drawn, and polished finishes
  • Commonly used in high-temperature steam systems

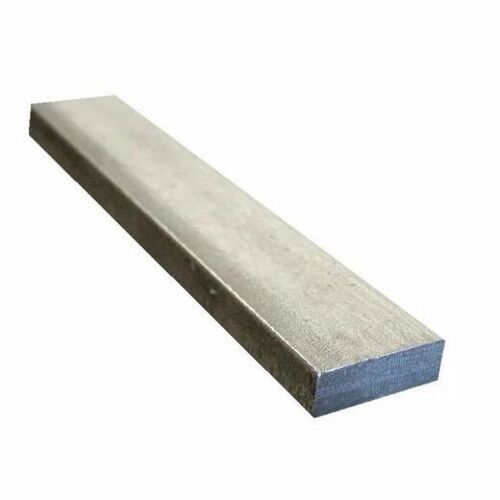

Alloy Steel F9 Rectangular Bar
View Alloy Steel F9 Rectangular Bar
Alloy Steel F9 Rectangular Bar
  • Rectangular alloy steel bars for fabrication and structural parts
  • Material standard: ASTM A182 Alloy Steel F9
  • Equivalent to DIN 1.7386 grade
  • Used in power generation and petrochemical units

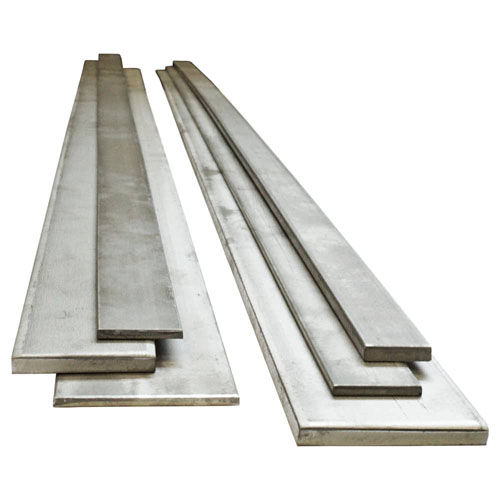

Alloy Steel F9 Flat Bar
View Alloy Steel F9 Flat Bar
Alloy Steel F9 Flat Bar
  • Flat alloy steel bars with excellent creep and oxidation resistance
  • Produced in accordance with ASTM A182 F9
  • Supplied in hot rolled and machined finishes
  • Suitable for boilers, headers, and pressure components

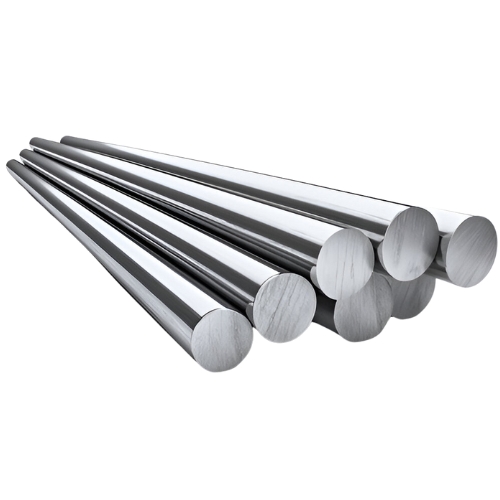

Alloy Steel F9 Bright Bar
View Alloy Steel F9 Bright Bar
Alloy Steel F9 Bright Bar
  • Bright finished alloy steel bars with high dimensional precision
  • Ideal for precision machining and threaded components
  • Manufactured as per ASTM A182 Alloy Steel F9
  • Used in valves, studs, and high-temperature assemblies

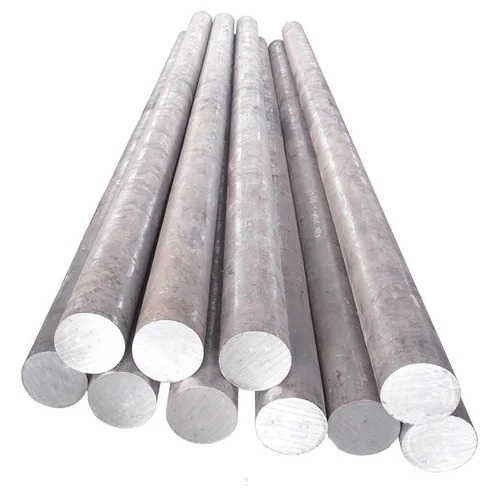

Alloy Steel F9 Forged Bar
View Alloy Steel F9 Forged Bar
Alloy Steel F9 Forged Bar
  • Forged alloy steel bars for severe high-temperature applications
  • Grade: Alloy Steel F9 in accordance with ASTM A182
  • High creep strength and long-term thermal stability
  • Used in power plants, refineries, and heavy engineering

ALLOY STEEL F9 ROUND BAR EQUIVALENT GRADES

STANDARD UNS WERKSTOFF NR.
Alloy Steel F9 K90941 1.7386

SPECIFICATION OF ALLOY STEEL F9 ROUND BAR

Product Standard ASTM A182 / ASME SA182
Dimension Standard EN, DIN, JIS, ASTM, BS, ASME, AISI
Size 14 mm – 300 mm
Length 1 to 6 meters, Custom Cut Length
Form Round, Square, Hex (AF), Rectangle, Billet, Ingot, Forging

CHEMICAL COMPOSITION OF ALLOY STEEL F9 ROUND BAR

Grade C Mn P S Si Ni Cr Mo Cb
F9 0.15 max 0.30 – 0.60 0.030 max 0.030 max 0.50 – 1.00 — 8.0 – 10.0 0.90 – 1.10 —

MECHANICAL PROPERTIES OF ALLOY STEEL F9 ROUND BAR

Grade Tensile Strength (MPa) min 0.2% Yield Strength (MPa) min Elongation (% in 50mm) min Rockwell B (HRB) max Brinell (HB) max
F9 585 380 20 — 179 – 217

💡 Practical Difference in Use

Use Alloy Steel Grade F9 Round Bars when: very high-temperature strength, excellent creep resistance, and superior oxidation resistance are required. Alloy Steel F9 is a 9% chromium-molybdenum alloy steel designed for continuous service at elevated temperatures, especially in steam and heat-transfer environments. → Example: superheaters, reheaters, high-temperature steam piping, boiler components, and power plant headers.


Bright Finished / Machined Alloy Steel F9 Round Bars when: high dimensional accuracy, smooth surface finish, and precision machining are essential for critical high-temperature components. Bright bars improve machinability and ensure consistent performance in demanding thermal conditions. → Example: valve spindles, studs, bolts, shafts, turbine-related parts, and precision-machined power plant components.

Applications of Alloy Steel Grade F9 Round Bars

Alloy Steel F9 round bars are extensively used in high-temperature environments where long-term strength, creep resistance, and oxidation resistance are critical.

  • Thermal Power Plants: Superheaters, reheaters, steam piping.
  • Refineries & Petrochemicals: High-temperature process piping.
  • Boiler Manufacturing: Heat-resistant pressure components.

When to Choose Alloy Steel Grade F9 Round Bars?

Selection depends on operating temperature, creep resistance requirements, oxidation resistance, and long-term service reliability.

Choose Alloy Steel F9 Round Bars when:

  • Very high operating temperatures are involved
  • Excellent creep and rupture strength is required
  • Resistance to oxidation and scaling is essential
  • Components operate under continuous thermal stress
  • Long service life in steam environments is required
  • Used in power generation and boiler systems

Bright / Machined Alloy Steel F9 Round Bars are preferred when:

  • Tight dimensional tolerances are required
  • Smooth surface finish is critical
  • Precision machining or threading is involved
  • Uniform high-temperature performance is needed
  • Used in valves, fasteners, and turbine components
  • Applied in critical steam and heat-transfer systems

Industries That Use Alloy Steel Grade F9 Round Bars

Alloy Steel F9 is widely used in industries operating under extreme temperature and thermal stress conditions.

Power Generation Industry

Used in high-temperature steam systems.

Uses

Superheaters, reheaters, steam piping.

Why Alloy Steel F9?

Outstanding creep resistance and oxidation resistance.

Boiler & Heat Equipment Industry

Used in heat-intensive boiler components.

Uses

Headers, pressure parts.

Why Alloy Steel F9?

Long-term stability at elevated temperatures.

Petrochemical Industry

Used in high-temperature refining units.

Uses

Process piping, fittings.

Why Alloy Steel F9?

Reliable performance under severe thermal exposure.

Request a Quote

Looking for high-quality Alloy Steel F9 Round Bars & Rods? Our products are manufactured in compliance with ASTM A182 and ASME SA182 standards . Get in touch with us today.
