Premium Titanium Gr 1/2/5/9 Forged Pipe Fittings by Ratnadeep Steel & Engg. Co.
Ratnadeep Steel & Engg. Co. is a leading manufacturer, exporter, and supplier of Titanium Grade 1, Grade 2, Grade 5, and Grade 9 Forged Pipe Fittings, engineered for exceptional corrosion resistance and superior strength-to-weight ratio. Titanium forged fittings are ideal for demanding applications involving chlorides, seawater, and aggressive chemical environments.
Titanium Forged Pipe Fittings offer outstanding mechanical strength, low density, excellent fatigue resistance, and superior weldability. Grade 1 and Grade 2 fittings provide excellent formability and corrosion resistance, while Grade 5 and Grade 9 forged fittings deliver enhanced strength for high-pressure and elevated-temperature systems. Precision-machined threads and socket weld ends ensure leak-proof connections, compact design, and long-term operational reliability.
Widely used in chemical processing, aerospace, marine systems, desalination plants, oil & gas, power generation, and heat exchangers, our titanium forged fittings comply with international standards. Trust Ratnadeep Steel & Engg. Co. for premium titanium forged pipe fittings that combine durability, efficiency, and unmatched corrosion resistance.

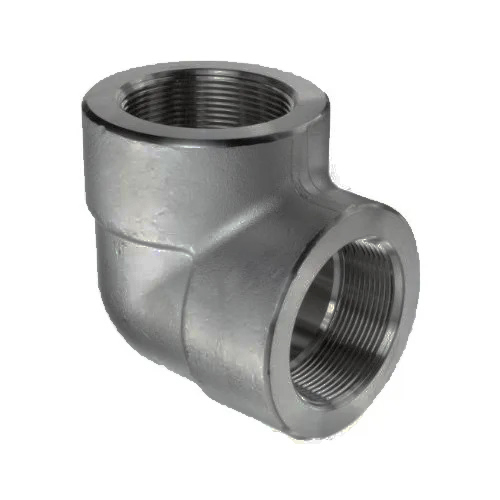

- Titanium Grades 1,2,5,9 Threaded and Socket Weld Elbows
- ASME SB381 / ASTM B381 / DIN 3.7025 / 3.7035 / 3.7195 standards
- 45° and 90° Threaded or Forged Elbows
- UNS R50250, R50400, R56400, R56320 Titanium Alloy Elbows

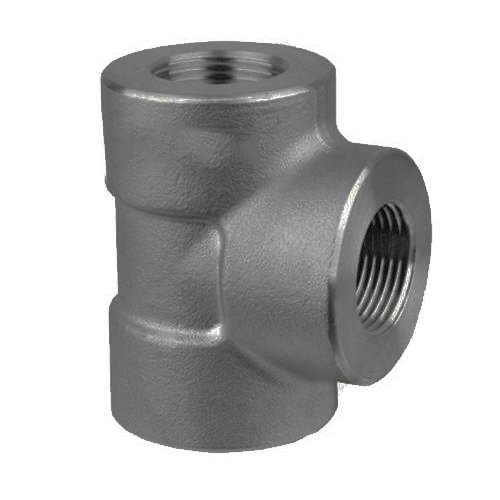

- Titanium Grades 1,2,5,9 Equal and Reducing Tees
- Socket Weld, Threaded, and Forged Tees
- ASME SB381, ASTM B381 compliant
- UNS R50250, R50400, R56400, R56320 Alloy Tees

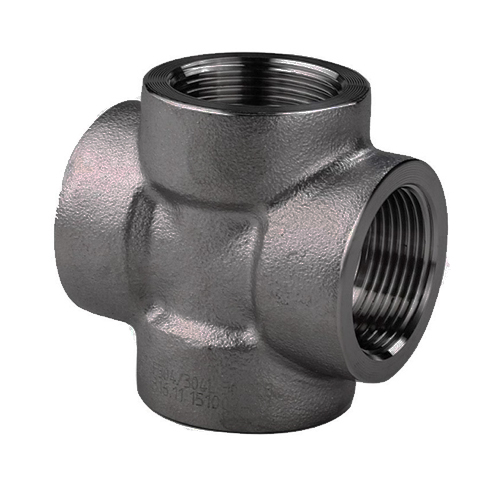

- Titanium Grades 1,2,5,9 Equal and Reducing Crosses
- Threaded, Socket Weld, and Forged Cross fittings
- ASME SB381, ASTM B381 standards
- UNS R50250, R50400, R56400, R56320 Alloy Crosses

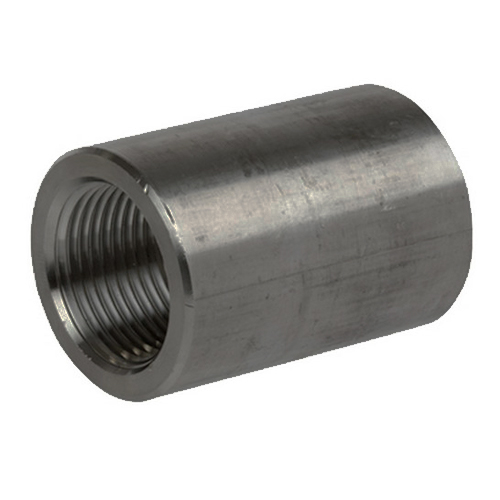

- Titanium Grades 1,2,5,9 Threaded and Forged Full Couplings
- Socket Weld Full Couplings
- ASTM B381 / ASME SB381 compliant
- UNS R50250, R50400, R56400, R56320 Alloy Couplings

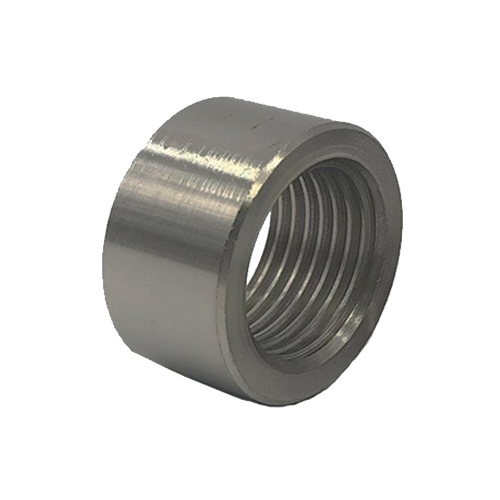

- Titanium Grades 1,2,5,9 Half Couplings
- Socket Weld, Threaded and Forged Half Couplings
- ANSI B16.11, ASTM B381, ASME SB381 standards
- UNS R50250, R50400, R56400, R56320 Alloy Half Couplings
- Titanium Grades 1,2,5,9 Threaded and Socket Weld Pipe Caps
- ASME SB381, ASTM B381 compliant
- UNS R50250, R50400, R56400, R56320 Alloy Pipe Caps
- Titanium Grades 1,2,5,9 Forged and Socket Weld Unions
- Threaded Union fittings
- ASME SB381, ANSI B16.5, ASTM B381 standards
- UNS R50250, R50400, R56400, R56320 Alloy Unions

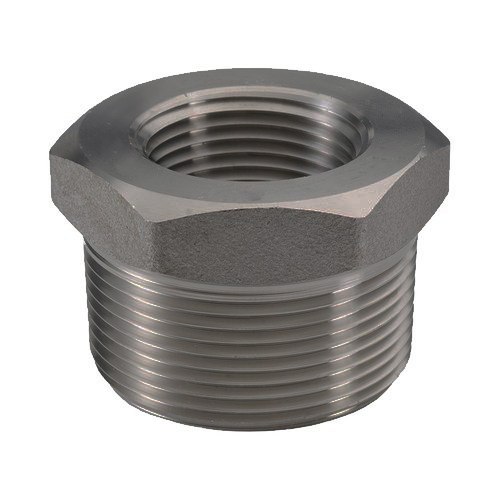

- Titanium Grades 1,2,5,9 Threaded and Hex Head Bushings
- ASME SB381, ASTM B381, B16.36 compliant
- UNS R50250, R50400, R56400, R56320 Alloy Bushings

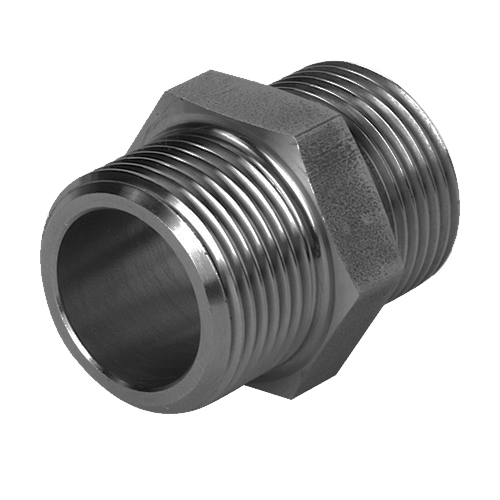

- Titanium Grades 1,2,5,9 Threaded and Socket Weld Nipples
- ASME SB381, ASTM B381, B16.36 compliant
- UNS R50250, R50400, R56400, R56320 Alloy Nipples
CHEMICAL COMPOSITION OF TITANIUM ALLOY FORGED PIPE FITTINGS
| Grade | Ti | Fe | C | N | O | H | Al | V | Others |
|---|---|---|---|---|---|---|---|---|---|
| Ti Gr 1 | Balance | 0.20 max | 0.10 max | 0.03 max | 0.18 max | 0.015 max | – | – | 0.4 max |
| Ti Gr 2 | Balance | 0.30 max | 0.10 max | 0.03 max | 0.25 max | 0.015 max | – | – | 0.4 max |
| Ti Gr 5 | Balance | 0.40 max | 0.10 max | 0.05 max | 0.20 max | 0.015 max | 5.5-6.75 | 3.5-4.5 | 0.4 max |
| Ti Gr 9 | 92.755-95.5 | 0.20 max | 0.05 max | 0.03 max | 0.15 max | 0.015 max | 2.5-3.5 | 2.0-3.0 | 0.4 max |
MECHANICAL PROPERTIES OF ASME SB363 TITANIUM FORGED PIPE FITTINGS
| Grade | Tensile Strength (min) | 0.2% Yield Strength (min) | Elongation % | Hardness |
|---|---|---|---|---|
| Ti Gr 1 | 240 MPa (35 ksi) | 170 MPa (25 ksi) | 24% min | 120 HB max |
| Ti Gr 2 | 340 MPa (50 ksi) | 280 MPa (40 ksi) | 20% min | 200 HB max |
| Ti Gr 5 | 920 MPa (134 ksi) | 866 MPa (126 ksi) | 10% min | 334 HB max |
| Ti Gr 9 | 620 MPa (90 ksi) | 530 MPa (77 ksi) | 15% min | 275 HB max |
SPECIFICATION OF TITANIUM GRADES 1, 2, 5 & 9 FORGED FITTINGS
| Grade | Specification | Dimension Standard | Size | Type | Rating Pressure |
|---|---|---|---|---|---|
| Grade 1 | ASTM B381 / ASME SB381 | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 | 1/8″ NB to 4″ NB | Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type) | Threaded End – 2000 / 3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
| Grade 2 | ASTM B381 / ASME SB381 | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 | 1/8st NB to 4st NB | Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type) | Threaded End – 2000 / 3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
| Grade 5 | ASTM B381 / ASME SB381 | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 | 1/8st NB to 4th NB | Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type) | Threaded End – 2000 / 3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
| Grade 9 | ASTM B381 / ASME SB381 | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 | 1/8″ NB to 4″ NB | Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type) | Threaded End – 2000 / 3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
GRADE 1 / 2 / 5 / 9 TITANIUM ASTM B363 FORGED FITTINGS EQUIVALENT GRADES
| STANDARD | UNS | WNR. | ISO | JIS | GB | AMS |
|---|---|---|---|---|---|---|
| Titanium Gr 1 | R50250 | 3.7025 | Ti 35 | Class 1 | TA1 | 4901 |
| Titanium Gr 2 | R50400 | 3.7035 | Ti 40 | Class 2 | TA2 | 4902 |
| Titanium Gr 5 | R56400 | 3.7165 | Ti-6Al-4V | Class 60 | TC4 | 4928 |
| Titanium Gr 9 | R56320 | 3.7195 | Ti-3Al-2.5V | Class 61 | TA18 | 4945 |
PHYSICAL PROPERTIES OF TITANIUM FORGED FITTINGS
| Property | Ti Gr 1 / Gr 2 | Ti Gr 5 | Ti Gr 9 |
|---|---|---|---|
| Density @ Room Temperature | 4.51 g/cm³ (0.163 lb/in³) | 4.43 g/cm³ (0.160 lb/in³) | 4.48 g/cm³ (0.162 lb/in³) |
| Elastic/Young’s Modulus | 105 GPa (15.2 × 10⁶ psi) | 114 GPa (16.5 × 10⁶ psi) | 110 GPa (16.0 × 10⁶ psi) |
| Specific Heat @ 20°C (68°F) | 0.523 J/g·°C (0.125 Btu/lb·°F) | 0.526 J/g·°C (0.126 Btu/lb·°F) | 0.530 J/g·°C (0.127 Btu/lb·°F) |
| Melting Point | 1660°C (3020°F) | 1649°C (3000°F) | 1650°C (3002°F) |
| Thermal Conductivity @ 20°C (68°F) | 16.4 W/m·K (114 Btu·in/h·ft²·°F) | 6.7 W/m·K (46.5 Btu·in/h·ft²·°F) | 7.1 W/m·K (49.3 Btu·in/h·ft²·°F) |
| Electrical Resistivity @ 20°C (68°F) | 0.420 μΩ·m | 1.71 μΩ·m | 1.45 μΩ·m |
| Mean Coefficient of Thermal Expansion (20-100°C) | 8.6 × 10⁻⁶ /°C | 8.6 × 10⁻⁶ /°C | 9.2 × 10⁻⁶ /°C |
| Magnetic Permeability | Paramagnetic | Paramagnetic | Paramagnetic |
💡 Practical Difference in Use
Use Titanium Grade 1 / 2 / 5 / 9 Forged Pipe Fittings when: compact piping systems require exceptional corrosion resistance, high strength-to-weight ratio, and leak-proof threaded or socket weld connections. Titanium forged fittings perform exceptionally in chloride-rich, seawater, and chemically aggressive environments. → Example: chemical processing units, desalination plants, aerospace systems, marine piping, and power generation.
Applications of Titanium Forged Pipe Fittings
Titanium forged fittings are ideal for high-performance systems where space efficiency and reliability are critical.
- Chemical Processing: Corrosive fluid transfer and instrumentation lines.
- Marine & Desalination: Seawater and brine handling systems.
- Aerospace & Power: Lightweight, high-strength forged piping.
When to Choose Titanium Grade 1 / 2 / 5 / 9?
These grades are selected based on strength, corrosion resistance, and operating pressure.
Choose Titanium Forged Fittings when:
- Maximum corrosion resistance is essential
- Lightweight and high mechanical strength are required
- Compact forged connections are preferred
- Exposure to seawater or chlorides is severe
- Critical or high-performance systems are involved
Usage Guide for Titanium Grade 1 / 2 / 5 / 9 Forged Pipe Fittings
Directional change in high-pressure forged piping.
Choose Socket Weld Elbow when
- 90° direction change is required
- High-pressure compact piping
- Leak-proof welded joint
- Chemical and marine systems
Threaded flow distribution in compact systems.
Choose Forged Tee when
- Branch connection is required
- Space-saving forged design
- Corrosive chemical services
- High-performance piping
Four-way distribution in high-performance compact piping.
Choose Cross when
- Multi-directional flow is required
- High purity or corrosive systems
- Strong forged construction is needed
- Chemical and aerospace plants
Connects two pipes securely in corrosive services.
Choose Full Coupling when
- Pipe-to-pipe connection is required
- High integrity joint is needed
- Corrosive or high-purity fluids
- Process and utility lines
Branch outlet connection in forged piping systems.
Choose Half Coupling when
- Instrument or drain connections
- High-pressure service
- Compact welded or threaded joints
- Critical process systems
Seals threaded pipe ends in corrosive environments.
Choose Cap when
- Pipe termination is required
- Temporary or permanent sealing
- High corrosion resistance
- Chemical processing lines
Allows easy disconnection in corrosion-resistant lines.
Choose Union when
- Frequent dismantling is required
- High-value piping systems
- Leak-tight threaded joints
- Marine and chemical services
Threaded size reduction in compact titanium systems.
Choose Bushing when
- Pipe size reduction is needed
- Space is limited
- Corrosion resistance is critical
- Instrumentation piping
Short threaded connection for lightweight and corrosion-resistant systems.
Choose Nipple when
- Compact threaded extension is required
- Weight reduction is critical
- Corrosive or chloride-rich media
- Aerospace or chemical piping
Our Forged Pipe Fittings are manufactured using advanced forging processes and undergo extensive quality checks to ensure flawless dimensional accuracy, durability, and long service life. Each fitting is thoroughly inspected using key NDT techniques such as radiographic testing (RT), ultrasonic testing (UT), hydrostatic testing, and visual/dimensional examination. We also perform detailed chemical composition analysis and mechanical property testing to ensure material compliance with strict industry standards.
Throughout the forging and finishing stages, every forged fitting is monitored closely to eliminate defects such as misalignment, surface irregularities, and wall-thickness variations. This ensures perfect joint integrity and high-performance reliability in pipelines carrying high temperatures, pressures, and corrosive media. All our forged fittings fully comply with ASME, ASTM, MSS-SP, and related global specifications, making them a preferred choice for critical piping systems worldwide.
