Premium Nickel 200/201 Buttweld Pipe Fittings by Ratnadeep Steel & Engg. Co.
Ratnadeep Steel & Engg. Co. is a reputed manufacturer, exporter, & supplier of Nickel 200 and Nickel 201 Buttweld Pipe Fittings. Produced from commercially pure wrought nickel, these fittings offer excellent resistance to a wide range of corrosive media, particularly caustic alkalis, dry chlorine, and reducing environments. Nickel alloys are well known for their outstanding thermal and electrical conductivity along with excellent ductility and toughness.
Nickel 200 is suitable for service up to moderate temperatures, while Nickel 201, with lower carbon content, is specially designed for high-temperature applications to prevent graphite precipitation and maintain structural integrity. These alloys exhibit exceptional resistance to stress corrosion cracking and maintain stable mechanical properties under both cryogenic and elevated temperature conditions. Our nickel buttweld fittings are manufactured with accurately prepared bevel ends to ensure strong weld joints and consistent performance in critical applications.
Engineered for efficient flow and long-term reliability, our Nickel 200 / 201 buttweld pipe fittings are widely used in chemical processing equipment, caustic soda plants, food processing systems, heat exchangers, pressure vessels, and electronic and aerospace industries. Select Ratnadeep Steel & Engg. Co. for high-quality Nickel buttweld fittings that meet international standards and demanding industrial requirements.
- Nickel 200 90 Deg Elbow
- Nickel 201 45 Deg Elbow
- UNS N02200 180 Deg Elbow
- UNS N02201 LR Elbow
- DIN 2.4066 SR Elbow
- ANSI B16.9 Alloy 200 90 Degree Short Radius Elbow
- Nickel 201 45 Deg Long Radius Elbow
- ASME B16.9 Nickel 200 Equal Tee
- UNS N02201 Pipe Tee
- DIN 2.4066 Butt weld Tee
- ASME SB366 Nickel 201 Reducing Tee manufacturer
- DIN 2.4068 Unequal Tee
- Alloy UNS N02201 Straight Tee
- ASTM B366 Nickel 200 Eccentric Reducer Supplier
- B16.9 Nickel 201 Eccentric Reducer
- Alloy UNS N02200 / N02201 Eccentric Reducers
- DIN 2.4066 / 2.4068 Eccentric Reducer
- ANSI B16.9 Nickel 200 Concentric Reducer Supplier
- ASME SB366 Nickel 201 Concentric Reducer
- Alloy UNS N02200 / N02201 Concentric Reducers
- DIN 2.4066 / 2.4068 Concentric Reducer
- ASME B16.9 Nickel Alloy 200 Long Stub End Supplier
- ASTM B366 Nickel 201 Long Stub Ends
- Alloy UNS N02200 / N02201 Lap Joint Stub End
- DIN 2.4066 / 2.4068 Long Stub End
- ASTM B366 / SB366 Nickel 200 Short Stub End Supplier
- ASME B16.9 Nickel Alloy 201 Short Stub Ends
- Alloy UNS N02200 / N02201 Short Stub Ends
- DIN 2.4066 / 2.4068 Short Stub End
- ASTM B366 / SB366 Nickel 200 Pipe Cap Supplier
- ASME B16.9 Nickel Alloy 201 End Pipe Cap
- Alloy UNS N02200 Pipe End Cap
- UNS N02201 Buttweld Cap
- DIN 2.4066 / 2.4068 End Cap
- ASTM B366 / SB366 Nickel 200 Equal Cross
- ASME B16.9 Nickel Alloy 201 Buttweld Cross
- Alloy UNS N02200 / N02201 Unequal Cross
- DIN 2.4066 / 2.4068 Reducing Cross
- ASME SB 366 Nickel Alloy 200 Pipe Bend Exporter
- B16.9 Nickel 201 Piggable Bend
- Alloy UNS N02200 / N02201 U Bend
- DIN 2.4066 Long Radius Bend
- DIN 2.4068 Buttweld Bend
CHEMICAL COMPOSITION OF NICKEL 200/201 SEAMLESS AND WELDED PIPE FITTINGS
| Element | Nickel 200 | Nickel 201 |
|---|---|---|
| Ni | 99.00 min | 99.00 min |
| Fe | 0.40 max | 0.40 max |
| Mn | 0.35 max | 0.35 max |
| Si | 0.35 max | 0.35 max |
| C | 0.15 max | 0.02 max |
| S | 0.01 max | 0.01 max |
| Cu | 0.25 max | 0.25 max |
MECHANICAL PROPERTIES OF ASME SB366 NICKEL BUTTWELD PIPE FITTINGS
| Grade | Property | Metric | Imperial |
|---|---|---|---|
| Nickel 200 | Tensile strength (annealed) | 462 MPa | 67,000 psi |
| Yield strength (annealed) | 148 MPa | 21,500 psi | |
| Elongation at break | 45% | 45% | |
| Nickel 201 | Tensile strength (annealed) | 403 MPa | 58,500 psi |
| Yield strength (annealed) | 103 MPa | 14,900 psi | |
| Elongation at break | 50% | 50% |
SPECIFICATION OF NICKEL ALLOY BUTTWELL FITTINGS
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Butt Weld Fittings: ½” to 10″ | Welded Butt Weld Fittings: ½” to 48″ |
| Schedule | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / ERW / Welded / Fabricated |
| Thickness | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc. |
200/201 NICKEL ASTM B366 BUTTWELD FITTINGS EQUIVALENT GRADES
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | HT-2 | N-100M | Ni 99.2 |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | HT-2 | – | LC-Ni 99 |
PHYSICAL PROPERTIES OF NICKEL ALLOY 200, 201 BUTTWELD FITTINGS
| Property | Value | Unit/Condition |
|---|---|---|
| Density | 8.902 | g/cm³ |
| Melting Point | 1453 | °C (2647 °F) |
| Boiling Point | 2732 | °C (4950 °F) |
| Thermal Conductivity | 0.909 | W/cm·K @ 298.2K (25°C) |
| Electrical Resistivity | 6.84 | μΩ·cm @ 20°C |
| Electronegativity | 1.8 | Paulings |
| Specific Heat | 0.106 | Cal/g·K @ 25°C |
| Heat of Vaporization | 91.0 | K-Cal/gm atom at 2732 °C |
| Heat of Fusion | 4.20 | Cal/gm mole |
💡 Practical Difference in Use
Use Nickel 200 / 201 Buttweld Pipe Fittings when: high purity nickel with excellent resistance to caustic alkalis, reducing environments, and thermal stability is required. These commercially pure nickel grades offer outstanding ductility, toughness, and corrosion resistance. → Example: caustic soda plants, food processing equipment, chemical handling systems, heat exchangers, and electronic manufacturing units.
Applications of Nickel 200 / 201 Buttweld Pipe Fittings
Nickel Buttweld Pipe Fittings are designed for stable performance in chemically aggressive and temperature-sensitive environments.
- Caustic & Chemical Processing: Caustic soda handling, chemical transfer lines, and reactors.
- Food & Pharmaceutical Industries: Hygienic and corrosion-resistant process piping.
- Heat Transfer Systems: Heat exchangers and thermal processing equipment.
When to Choose Nickel 200 / 201?
These nickel grades are ideal for applications requiring high corrosion resistance, purity, and stable mechanical properties across a wide temperature range.
Choose Nickel 200 / 201 when:
- Exposure to caustic alkalis or reducing environments is continuous
- High-purity nickel is required for sensitive processes
- Operating temperatures are high and graphite precipitation must be avoided (Nickel 201)
- Applications demand excellent ductility and thermal conductivity
- Used in chemical, food processing, or electronic manufacturing systems
Industries That Use Nickel 200 / 201 Buttweld Pipe Fittings
Nickel fittings are widely used in industries where chemical purity, corrosion resistance, and thermal stability are essential.
Designed for caustic and reducing chemical environments.
Uses
Caustic soda plants, chemical reactors, and transfer pipelines.
Why Nickel?
Exceptional resistance to caustic alkalis and chemical attack.
Preferred for hygienic and contamination-free processes.
Uses
Food processing lines, pharmaceutical equipment, and clean piping systems.
Why Nickel?
High purity and excellent corrosion resistance ensure product integrity.
Used in thermal and electrically sensitive applications.
Uses
Heat exchangers, electronic components, and thermal processing units.
Why Nickel?
Offers excellent thermal conductivity and stability at elevated temperatures.
Usage Guide for Nickel 200 / 201 Buttweld Pipe Fittings

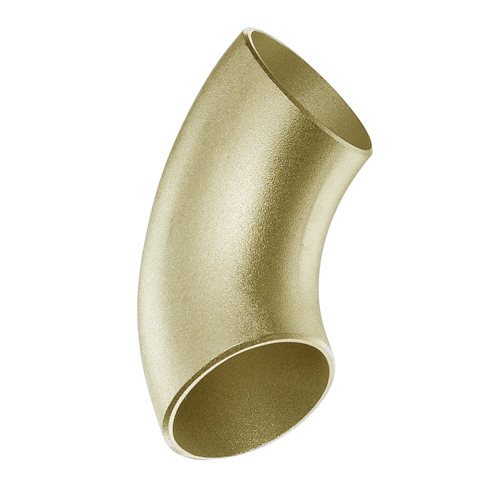

Flow direction change in caustic and chemically pure piping systems.
Choose Elbow when
- 45°, 90°, or 180° directional change is required
- System handles caustic alkalis or reducing chemicals
- High purity and corrosion resistance are required
- Used in chemical or food processing plants

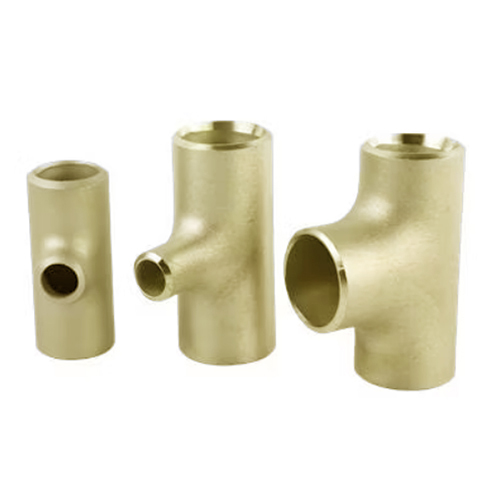

Clean and corrosion-resistant branch connections.
Choose Tee when
- Branch or distribution lines are required
- High resistance to caustic attack is essential
- Purity of the process must be maintained
- Used in chemical or pharmaceutical industries

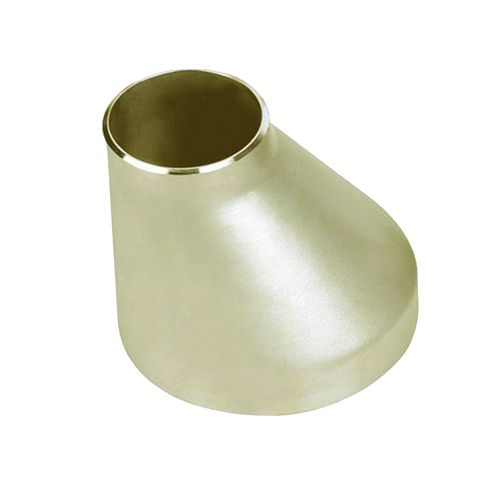

Prevents air pockets in caustic and process piping systems.
Choose Eccentric Reducer when
- Installed in horizontal pipelines or pump suction lines
- Stable flow and corrosion resistance are required
- Used in caustic soda or chemical plants
- Dimensional stability is essential

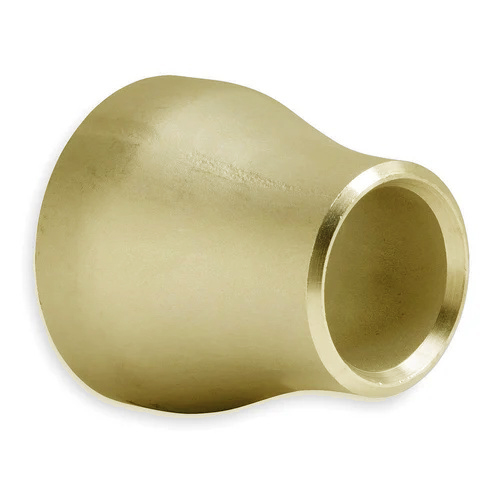

Uniform diameter reduction in vertical or clean service pipelines.
Choose Concentric Reducer when
- Vertical piping alignment is required
- Smooth and uniform flow transition is critical
- High-temperature service requires Nickel 201
- Used in chemical or food-grade systems

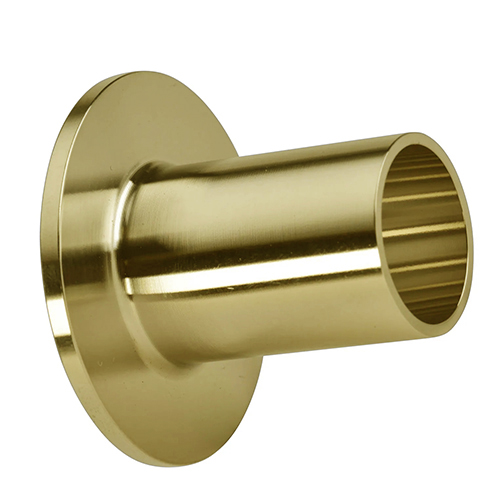

Allows easy dismantling in high-purity and caustic service pipelines.
Choose Long Stub End when
- Frequent cleaning or inspection is required
- Corrosion resistance at flange joints is essential
- Used in chemical or pharmaceutical plants
- High-purity process conditions exist
Compact lap joint option for limited installation space.
Choose Short Stub End when
- Space constraints exist
- Cost-effective lap joint flanges are required
- Used in caustic or food processing systems
- Corrosion resistance and cleanliness are critical

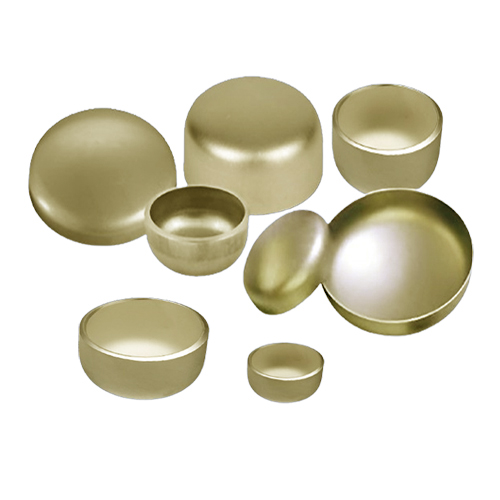

Secure pipe end closure in caustic and chemical systems.
Choose Pipe Cap when
- Pipe ends must be sealed
- Used during pressure testing or future expansion
- Leak-free performance is required
- Exposed to caustic alkalis or reducing media
Four-way flow distribution in clean and caustic service piping.
Choose Cross when
- Multiple branch connections are required
- High purity piping layouts are used
- Strong welded joints are required
- Used in chemical or pharmaceutical plants

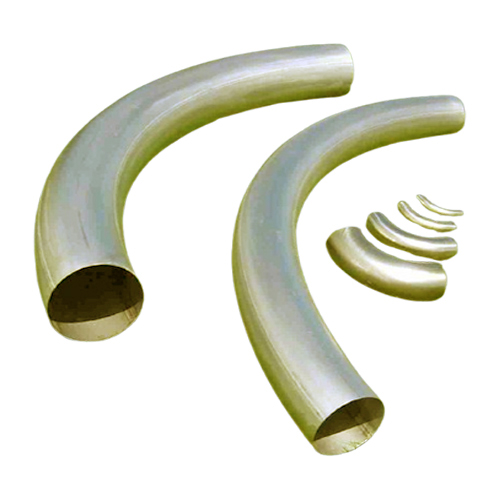

Smooth directional change in caustic and chemical pipelines.
Choose Pipe Bend when
- Gradual flow direction change is required
- Low pressure drop is essential
- Used in caustic soda or chemical processing units
- Stable performance at elevated temperatures is needed
Our Buttweld Pipe Fittings are manufactured using advanced processes and undergo extensive quality checks to ensure flawless weldability, durability, and long service life. Each fitting is thoroughly inspected using key NDT techniques such as radiographic testing (RT), ultrasonic testing (UT), hydrostatic testing, and visual/dimensional examination. We also perform detailed chemical composition analysis and mechanical property testing to ensure material compliance with strict industry standards.
Throughout the forming and welding stages, every buttweld fitting is monitored closely to eliminate defects such as misalignment, surface irregularities, and wall-thickness variations. This ensures perfect joint integrity and high-performance reliability in pipelines carrying high temperatures, pressures, and corrosive media. All our buttweld fittings fully comply with ASME, ASTM, MSS-SP, and related global specifications, making them a preferred choice for critical piping systems worldwide.
Request a Quote
Looking for high-quality Nickel 200/201 Buttweld Pipe Fittings Manufacturer and Exporter in India Buttweld Pipe Fittings? Get in touch with us today.
Contact Us
