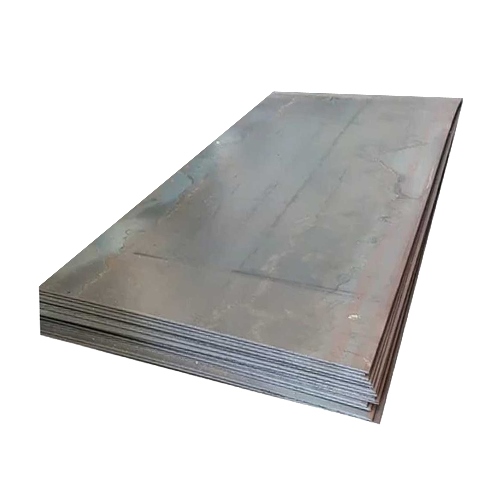

High Quality Mild Steel Sheets & Plates
IS 2002 / 2062 • Formable • Ductile • Machinable
Get a Quote
MILD STEEL IS 2002 & IS 2062 EQUIVALENT GRADES
| STANDARD | IS | ASTM | BS | DIN | EN |
|---|---|---|---|---|---|
| Mild Steel IS 2002 | IS 2002 | A283 Grade C | BS 4360 43A | St 44-2 | S275JR |
| Mild Steel IS 2062 | IS 2062 | A36 | BS 4360 43B | St 52-3 | S355JR |
SPECIFICATION OF MILD STEEL IS 2002 & IS 2062 SHEETS AND PLATES
| Standard | IS 2002 / IS 2062 |
|---|---|
| Dimension Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness | 0.3 mm to 120 mm |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Surface Finishing | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc. |
CHEMICAL COMPOSITION OF MILD STEEL IS 2002 & IS 2062 SHEETS AND PLATES
| Grade | C | Mn | Si | S | P | Fe |
|---|---|---|---|---|---|---|
| IS 2002 | 0.23 max | 1.50 max | 0.40 max | 0.045 max | 0.045 max | Balance |
| IS 2062 | 0.22 max | 1.50 max | 0.40 max | 0.045 max | 0.045 max | Balance |
MECHANICAL PROPERTIES OF MILD STEEL IS 2002 & IS 2062 SHEETS AND PLATES
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| IS 2002 | 7.85 g/cm3 | 1420-1460 °C | 410-540 MPa | 250 MPa min | 23 % min |
| IS 2062 | 7.85 g/cm3 | 1420-1460 °C | 410-540 MPa | 250 MPa min | 23 % min |
The materials we supply undergo a comprehensive range of quality assurance procedures, including eddy current testing, hydrostatic testing, ultrasonic examination, and other essential NDT methods, along with detailed chemical and mechanical property evaluations. Each product is thoroughly inspected at multiple stages of manufacturing to ensure it is free from defects and suitable for demanding industrial applications. Our rigorous testing standards guarantee consistent quality and reliability. In addition, all products are manufactured in accordance with relevant industry norms and specifications, making them fully compliant and widely accepted in both domestic and international markets.
💡 Practical Difference in Use
Use Mild Steel IS 2002 when: the application demands reliable strength, good weldability, and safe performance under pressure and elevated temperature conditions.
→ Example: boilers, pressure vessels, storage tanks, and heat exchangers.
Use Mild Steel IS 2062 when: high tensile strength, excellent load-bearing capacity, and structural durability are required for construction and fabrication. → Example: bridges, buildings, structural frames, heavy fabrication, and industrial sheds.
Applications of Mild Steel IS 2002 & IS 2062 Sheets and Plates
IS 2002 and IS 2062 mild steel grades are widely used in pressure, structural, and fabrication applications where strength, weldability, and cost efficiency are essential.
- Boilers and Pressure Vessels: IS 2002 is specially designed for safe operation under internal pressure and heat.
- Structural Fabrication: IS 2062 is ideal for load-bearing structures and civil engineering projects.
- Storage and Processing Equipment: Both grades are widely used in tanks, silos, and industrial processing units.
When to Choose IS 2002 vs. IS 2062?
The selection depends on service pressure, temperature, and structural load requirements.
Choose IS 2002 when:
- Application involves internal pressure
- Moderate to high operating temperatures are present
- Boiler and pressure vessel compliance is required
- Uniform mechanical properties are essential for safety
- Good weldability and formability are needed
- Used in thermal and pressure-based equipment
Choose IS 2062 when:
- High structural strength and load capacity are critical
- Used in civil construction and infrastructure projects
- Good toughness and impact resistance are required
- Heavy fabrication and structural welding are involved
- Cost-effective structural steel is preferred
- Used in bridges, buildings, and industrial frameworks
Industries That Use Mild Steel IS 2002 & IS 2062 Sheets and Plates
IS 2002 and IS 2062 sheets and plates are essential across industries where pressure safety, structural strength, and fabrication efficiency are critical.
Primary sector for IS 2002 applications.
Uses
Boilers, steam drums, pressure tanks, and thermal vessels.
Why Mild Steel?
Provides safe pressure handling, thermal stability, and long service life.
Major application sector for IS 2062 structural steel.
Uses
Bridges, buildings, towers, columns, and structural frameworks.
Why Mild Steel?
Offers excellent load-bearing strength and structural reliability.
Used for large capacity storage and processing tanks.
Uses
Oil tanks, chemical storage tanks, water reservoirs, and silos.
Why Mild Steel?
High formability and cost efficiency for large structures.
Key material for industrial machinery and equipment bodies.
Uses
Machine bases, frames, industrial equipment housings.
Why Mild Steel?
Excellent weldability and moderate strength for fabrication ease.
Used in thermal and hydro power plants.
Uses
Boiler structures, pressure lines, support frames.
Why Mild Steel?
Provides thermal resistance with dependable structural support.
Used in marine fabrication and offshore structures.
Uses
Ship hull structures, marine platforms, dock structures.
Why Mild Steel?
High strength and excellent weldability for marine construction.
Used in heavy vehicle chassis and structural parts.
Uses
Truck frames, container bodies, transport equipment.
Why Mild Steel?
Provides durability and impact resistance for transport loads.
Used in energy infrastructure and processing plants.
Uses
Pressure piping supports, refinery structures, processing equipment.
Why Mild Steel?
Reliable mechanical strength and fabrication flexibility.
