Premium Carbon Steel Forged Pipe Fittings by Ratnadeep Steel & Engg. Co.
Ratnadeep Steel & Engg. Co. is a trusted manufacturer, exporter, and supplier of Carbon Steel Forged Pipe Fittings, offering durable and cost-effective solutions for high-pressure industrial piping systems. Produced from high-quality carbon steel grades, these forged fittings are known for their excellent strength, toughness, and long service life in demanding operational environments.
Carbon Steel Forged Pipe Fittings are specifically designed to withstand high pressure, temperature fluctuations, and mechanical stress. They offer superior weldability, precise dimensional accuracy, and enhanced structural integrity compared to fabricated alternatives. The forged construction ensures improved grain flow, making the fittings highly reliable for critical applications.
Our range of carbon steel forged fittings—including forged elbows, tees, couplings, unions, caps, bushings, and socket weld or threaded fittings—is widely used in oil and gas pipelines, refineries, petrochemical plants, power generation units, water treatment systems, and structural piping networks. Manufactured in compliance with international standards, Ratnadeep Steel & Engg. Co. delivers carbon steel forged pipe fittings that provide consistent performance, safety, durability, and excellent value for money.
- Carbon Steel Socket Weld Elbow
- Carbon A105 Threaded Elbow
- ASME SA 105 Carbon Steel 45° Threaded Elbow
- Carbon Steel 90° Forged Elbow
- Carbon Forged Elbow
- ASTM A105 Carbon Steel Forged Equal Tee
- ASME SA350 Carbon Steel Socket Weld Tee
- Carbon Steel Reducing Tee
- Carbon Steel Unequal Tee
- Carbon Steel Threaded Equal Tee
- Carbon Steel A105 Threaded Equal Cross
- ASTM A350 LF2 Carbon Forged Cross
- ASME SA105 Socket Weld Equal Cross
- Carbon Steel Reducing Cross
- Carbon Steel Forged Unequal Cross
- Carbon Steel Threaded Full Coupling
- ASME SA 105 Socket Weld Full Coupling
- ASTM A350 Carbon Steel Full Coupling
- Carbon Forged Full Coupling
- ASTM A105 Socket Weld Half Coupling
- ANSI B16.11 Threaded Half Coupling
- ASTM A350 Carbon Forged Half Coupling
- Carbon Steel Half Coupling
- Carbon Forged Pipe End Cap
- ASTM A105 Socket Weld Pipe Cap
- Carbon Steel Threaded Pipe Cap
- ASME SA 105 Forged Pipe End Cap
- Carbon Steel Socket Weld Union
- ASTM A350 LF2 Threaded Union
- ASME SA 105 Carbon Steel Forged Union
- ANSI Carbon Steel Union
- B16.36 Carbon Steel Hex Head Bushing
- ASTM A105 Threaded Bushing
- ASME SA 350 LF2 Forged Bushing
- Carbon Steel Reducing Bushing
- Carbon Steel Threaded Nipple
- ASME SA 105 Carbon Steel Hex Nipple
- ASTM A105 Carbon Steel Swage Nipple
- Carbon Steel Screwed Pipe Nipple
CHEMICAL COMPOSITION OF CARBON STEEL FORGED PIPE FITTINGS
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| ASTM A234 WPB | 0.30 max | 0.29-1.06 | 0.05 max | 0.058 max | 0.10 min | 0.40 max | 0.15 max | 0.40 max | 0.40 max |
| A420 WPL6 | 0.30 max | 0.60-1.35 | 0.035 max | 0.04 max | 0.15-0.40 | 0.30 max | 0.12 max | 0.40 max | 0.40 max |
| A860 WPHY 52 | 0.12 max | 1.60 max | 0.025 max | 0.010 max | 0.15-0.45 | 0.15 max | 0.25 max | 0.25 max | 0.35 max |
MECHANICAL PROPERTIES OF CARBON STEEL FORGED PIPE FITTINGS
| Grade | Tensile (ksi) | 0.2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| ASTM A234 WPB | 60 min | 35 min | 22 min | 79 max |
| A420 WPL6 | 65-95 | 35 min | 22 min | – |
| A860 WPHY 52 | 75 min | 52 min | 20 min | 92 max |
| A860 WPHY 70 | 90 min | 70 min | 18 min | 100 max |
SPECIFICATION OF HASTELLOY C22/C276 FORGED FITTINGS
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Dimension Standard | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size | 1/8th NB to 4th NB |
| Type | Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type) |
| Rating Pressure | Threaded End – 2000 / 3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
SPECIFICATION OF CARBON STEEL FORGED FITTINGS
| Grades | A/SA 105 GR. 70, A/SA 350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, etc |
|---|---|
| Specification | ASTM/ASME A/SA 105 / 694 / 350 |
| Dimension Standard | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size | 1/8th NB to 4th NB |
| Type | Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type) |
| Rating Pressure | Threaded End – 2000 / 3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
CARBON STEEL FORGED FITTINGS EQUIVALENT GRADES
| STANDARD | UNS | EN | DIN | JIS | GOST | BS |
|---|---|---|---|---|---|---|
| ASTM A234 WPB | K03006 | 1.0619 | St 35.8 | STS 38 | 20 | BS 3059: 360 |
| A420 WPL6 | K03009 | 1.0452 | TT St 35 N | STPT 370 | 20 | BS 3604: 360 |
| A860 WPHY 52 | K03014 | 1.8974 | StE 355.7 TM | STS 490 | 09G2S | BS 7191: 355 EM |
PHYSICAL PROPERTIES OF CARBON STEEL FORGED FITTINGS
| Property | ASTM A234 WPB | A860 WPHY 52 |
|---|---|---|
| Density @ Room Temperature | 0.284 lb/in³ (7.85 g/cm³) | 0.284 lb/in³ (7.85 g/cm³) |
| Elastic/Young’s Modulus | 29.0 × 10⁶ psi (200 GPa) | 29.0 × 10⁶ psi (200 GPa) |
| Specific Heat @ 20°C (68°F) | 0.108 Btu/lb/°F (452 J·kg⁻¹·°K⁻¹) | 0.108 Btu/lb/°F (452 J·kg⁻¹·°K⁻¹) |
| Melting Point | 2600°F to 2800°F (1425°C to 1540°C) | 2600°F to 2800°F (1425°C to 1540°C) |
| Thermal Conductivity @ 20°C (68°F) | 285 Btu·in/h·ft²·°F (41.2 W·m⁻¹·°K⁻¹) | 285 Btu·in/h·ft²·°F (41.2 W·m⁻¹·°K⁻¹) |
| Electrical Resistivity @ 20°C (68°F) | 0.160 μΩ·m | 0.160 μΩ·m |
| Mean Coefficient of Thermal Expansion (20-100°C) | 6.5 × 10⁻⁶ °K⁻¹ | 6.5 × 10⁻⁶ °K⁻¹ |
| Magnetic Permeability | Ferromagnetic | Ferromagnetic |
💡 Practical Difference in Use
Use Carbon Steel Forged Pipe Fittings when: high strength, pressure resistance, and cost-effective performance are required in compact piping systems. Forged carbon steel fittings provide excellent mechanical strength, superior grain structure, and dependable service in non-corrosive to mildly corrosive environments. → Example: oil & gas pipelines, refineries, power plants, water distribution systems, and industrial infrastructure.
Applications of Carbon Steel Forged Pipe Fittings
Carbon steel forged fittings are designed for secure, high-pressure connections in industrial and infrastructure piping systems.
- Oil & Gas: High-pressure piping, manifolds, and process connections.
- Power Generation: Boiler lines, steam piping, and auxiliary systems.
- Water & Infrastructure: Pumping stations and compact piping networks.
When to Choose Carbon Steel Forged Fittings?
Carbon steel forged fittings are ideal for applications demanding strength, durability, and economical performance under pressure.
Choose Carbon Steel Forged Fittings when:
- High pressure and temperature handling is required
- Compact, threaded or socket weld piping systems are preferred
- Cost-effective and durable solutions are needed
- Structural strength and reliability are critical
- Used in large-scale industrial or infrastructure projects
Industries That Use Carbon Steel Forged Pipe Fittings
Carbon steel forged fittings are widely used in industries that require strength, pressure integrity, and long-term reliability.
Designed for high-pressure oil and gas systems.
Uses
Process piping, manifolds, and refinery connections.
Why Carbon Steel Forged?
High strength, pressure resistance, and durability.
Suitable for thermal and power plant applications.
Uses
Boiler piping, steam lines, and auxiliary systems.
Why Carbon Steel Forged?
Excellent mechanical strength and thermal stability.
Ideal for large-scale infrastructure networks.
Uses
Water supply systems and industrial piping layouts.
Why Carbon Steel Forged?
Economical, strong, and easy to install.
Usage Guide for Carbon Steel Forged Pipe Fittings
Directional flow change in compact high-pressure piping.
Choose Socket Weld Elbow when
- 90° directional change is required
- High pressure and strength are critical
- Used in oil & gas and power plants
- Compact forged piping layout is preferred

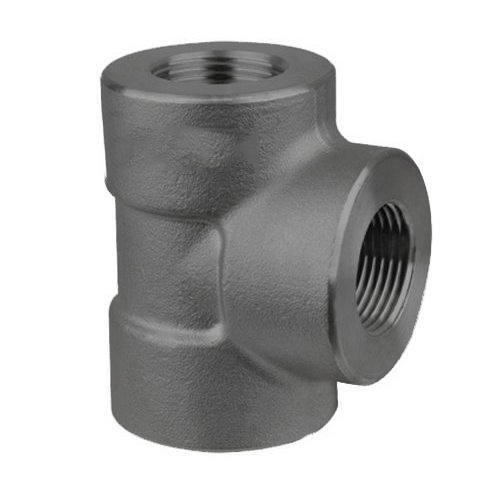

Branching flow distribution in industrial piping networks.
Choose Reducing Tee when
- Branch and main line sizes differ
- High-pressure service is required
- Used in oil, gas, or utility systems
- Structural strength is essential

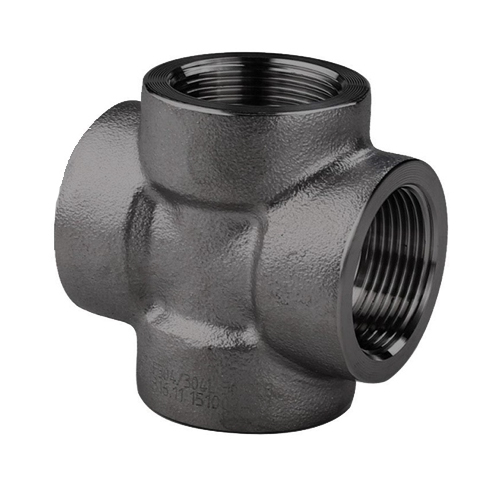

Four-way distribution in heavy-duty piping networks.
Choose Cross when
- Multiple branch connections are required
- High-pressure strength is critical
- Used in oil & gas and industrial plants
- Durable forged joints are needed

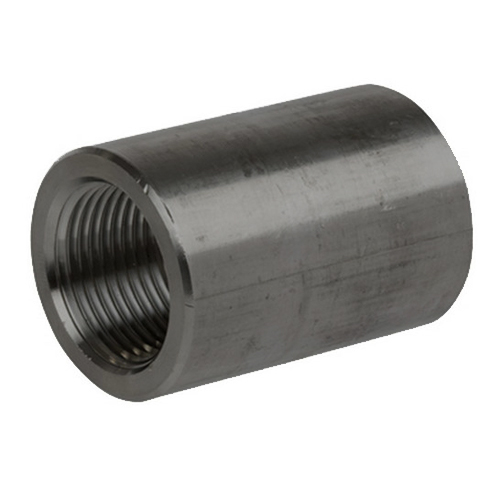

Connects two pipes in pressure-bearing systems.
Choose Full Coupling when
- Pipe-to-pipe joining is required
- High pressure and temperature exist
- Used in pipelines and power plants
- Durable forged joint is critical
Branch outlet connection in high-pressure systems.
Choose Half Coupling when
- Small branch connection is required
- Socket weld or threaded joint is needed
- Used in oil & gas piping
- High mechanical strength is essential

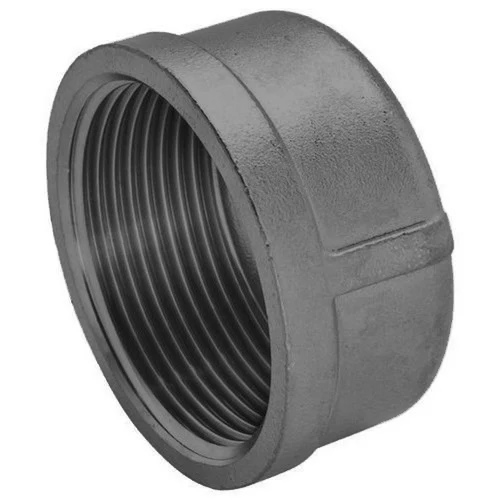

Closes pipe ends securely in industrial systems.
Choose Cap when
- Pipe end closure is required
- Used during testing or future expansion
- High strength is critical
- Installed in pipelines and plants

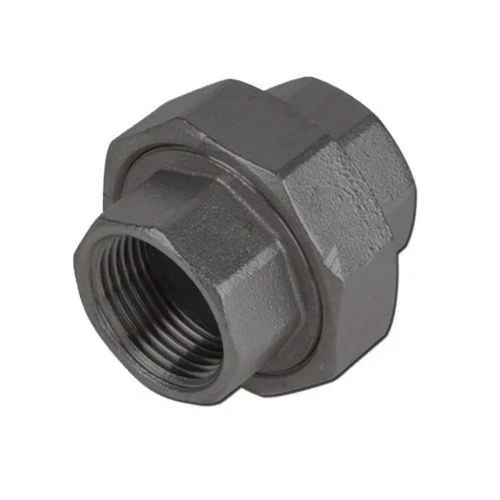

Allows easy dismantling in pressure piping systems.
Choose Union when
- Frequent maintenance is required
- Detachable joint is needed
- Used in pipelines and process systems
- High pressure service exists

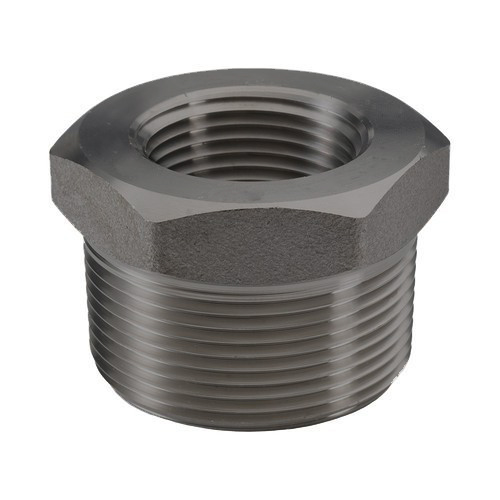

Threaded size reduction in compact piping layouts.
Choose Bushing when
- Pipe size reduction is required
- Space-saving solution is needed
- Used in oil, gas, or water systems
- Economical forged fitting is preferred

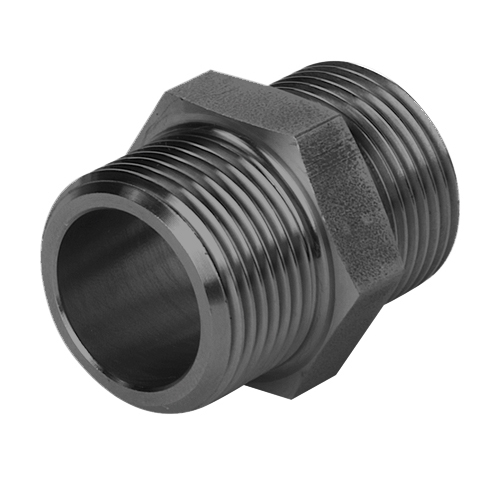

Short threaded connector for high-pressure industrial piping systems.
Choose Nipple when
- Close spacing connection is required
- High mechanical strength is needed
- Used in oil & gas and utility piping
- Cost-effective forged solution is preferred
Our Forged Pipe Fittings are manufactured using advanced forging processes and undergo extensive quality checks to ensure flawless dimensional accuracy, durability, and long service life. Each fitting is thoroughly inspected using key NDT techniques such as radiographic testing (RT), ultrasonic testing (UT), hydrostatic testing, and visual/dimensional examination. We also perform detailed chemical composition analysis and mechanical property testing to ensure material compliance with strict industry standards.
Throughout the forging and finishing stages, every forged fitting is monitored closely to eliminate defects such as misalignment, surface irregularities, and wall-thickness variations. This ensures perfect joint integrity and high-performance reliability in pipelines carrying high temperatures, pressures, and corrosive media. All our forged fittings fully comply with ASME, ASTM, MSS-SP, and related global specifications, making them a preferred choice for critical piping systems worldwide.
